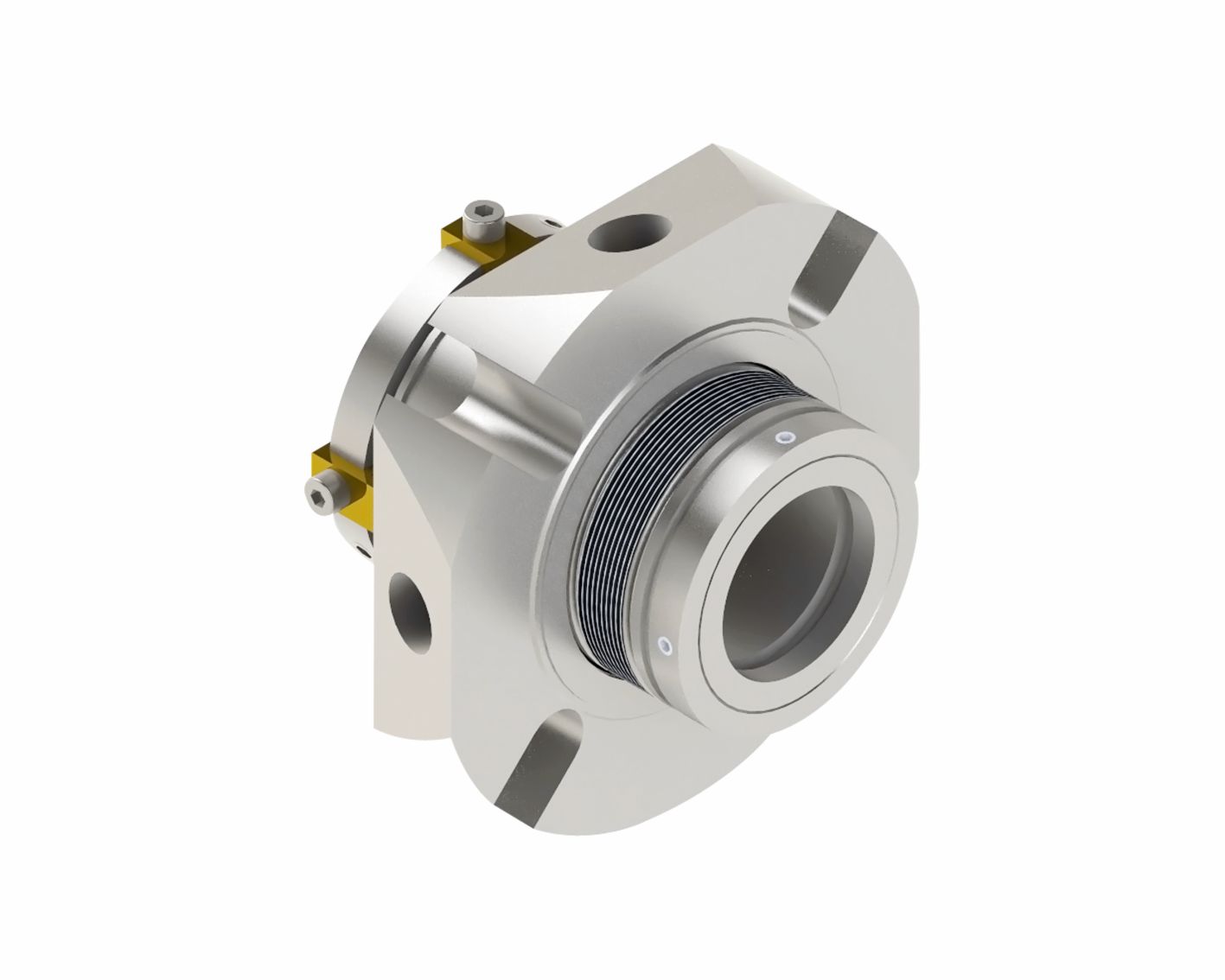

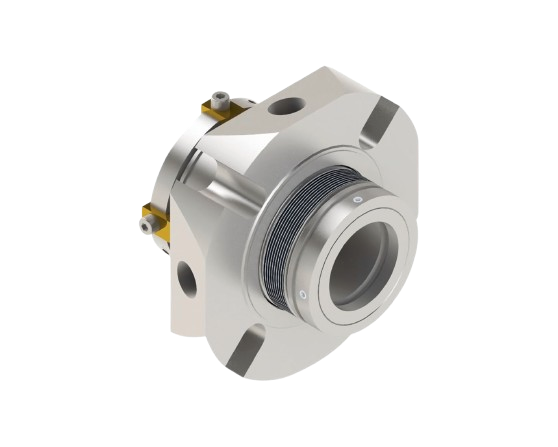

MTX Single Seals
Product Description
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Metal bellows design

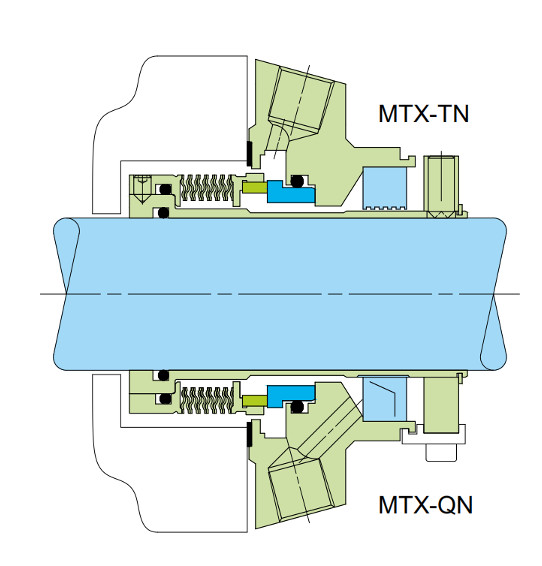

- Single seal with quench and lip seal
(-QN) or throttle ring (-TN) - Connections for flush and quenchavailable

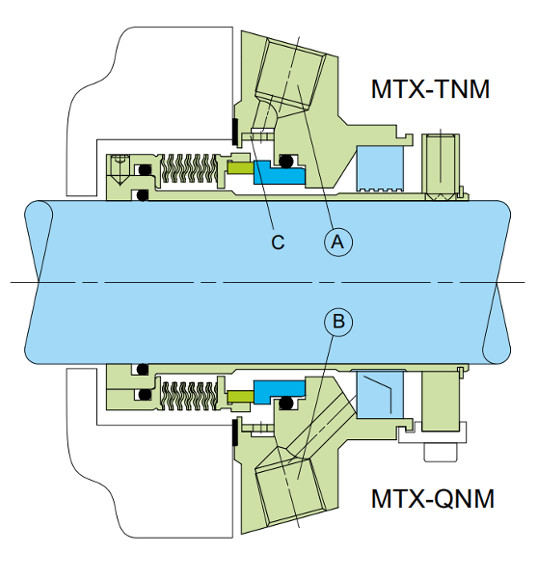

- Multipoint injection ring design for(-QNM, -TNM)

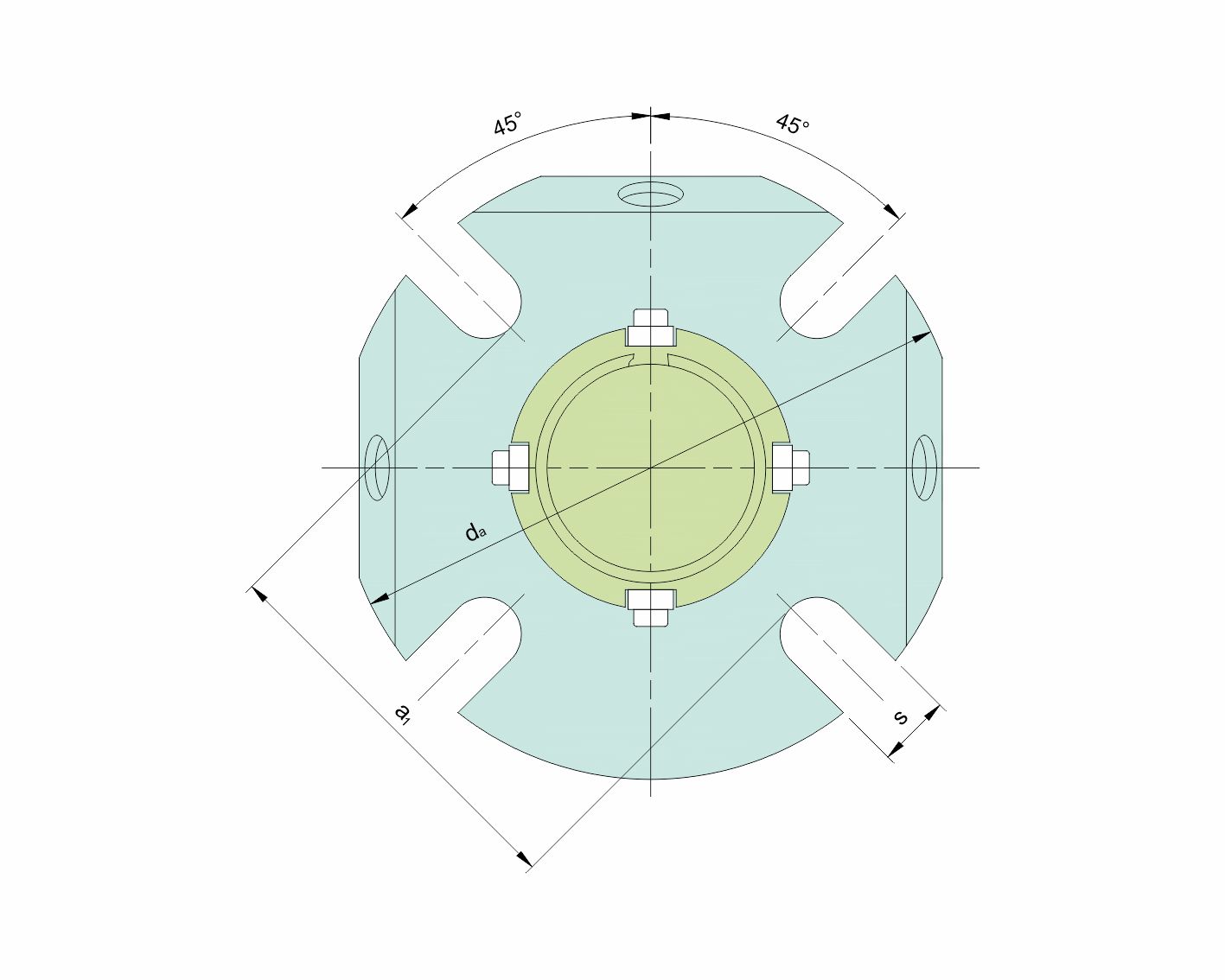

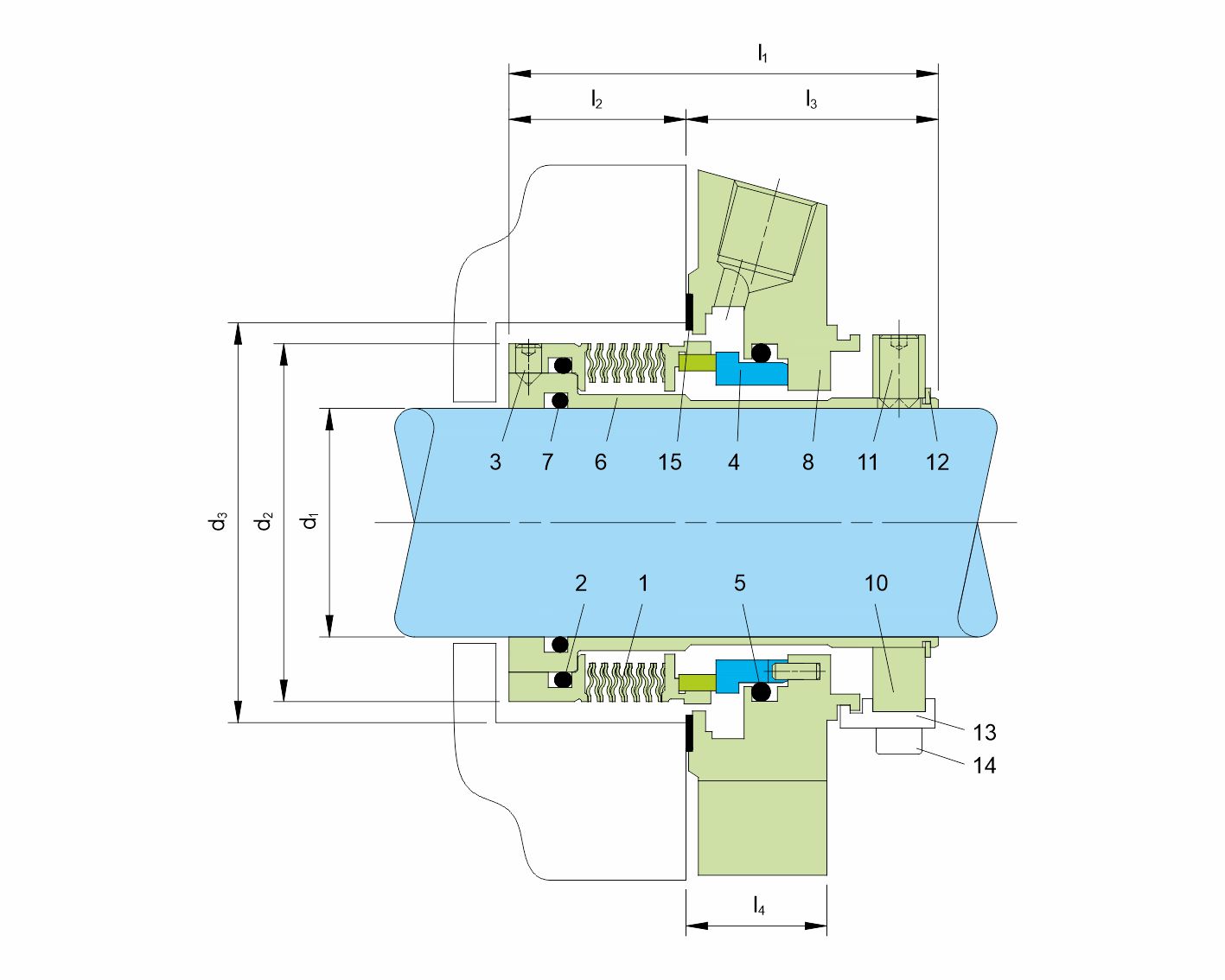

| Details | |
|---|---|
| Item No. | Description |
| 1 | Bellows unit |
| 2, 5, 7 | O-Ring |
| 3, 11 | Set screw |
| 4 | Seat |
| 6 | Shaft sleeve |
| 8 | Cover |
| 9 | Lip seal (-QN) or throttle ring (-TN) |
| 10 | Drive collar |
| 12 | Retaining ring |
| 13 | Assembly fixture |
| 14 | HSH Cap Screw |
| 15 | Gasket |
