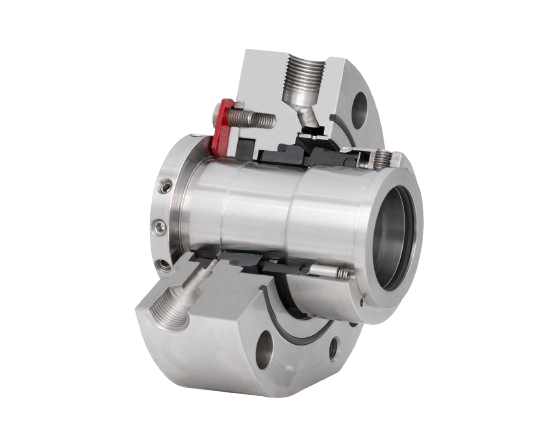

B750VN
Product Description
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Category 2 and 3, Type A, Arrangement1
- Design in accordance to API 682 / ISO21049
- Pumping device available for increase defficiency in circulation (B750VP)
- Rotary unit with multiple springs

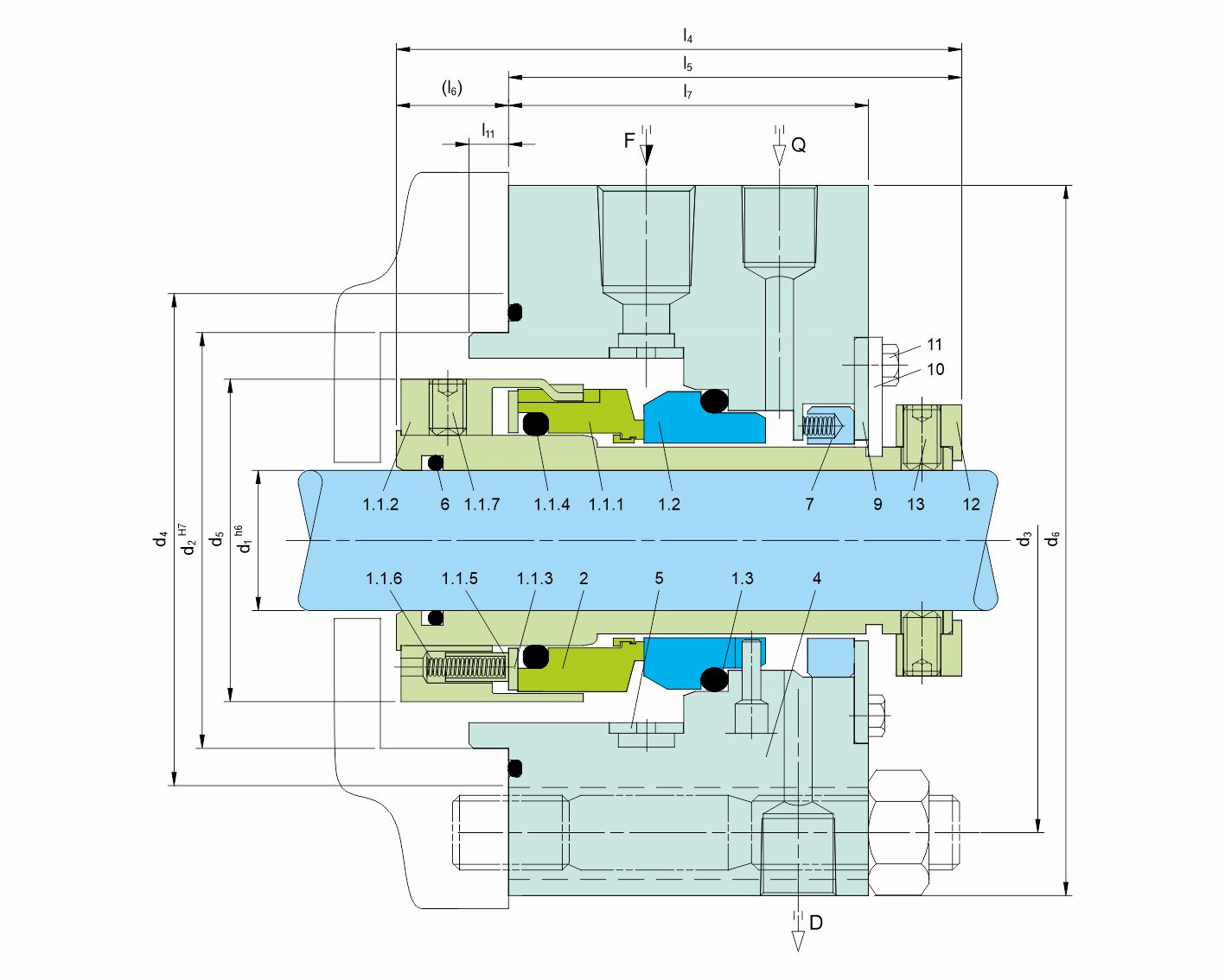

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1 | Seal face |
| 1.1.2 | Driver |
| 1.1.3 | Thrust ring |
| 1.1.4, 1.3, 6 ,8 | O-Ring |
| 1.1.5 | Sleeve |
| 1.1.6 | Spring |
| 1.1.7 | Set screw |
| 1.2 | Seat |
| 2 | Shaft sleeve |
| 4 | Housing |
| 5 | Insert |
| 7 | Trottle ring |
| 9 | Washer |
| 10 | Assembly fixture |
| 11 | Hexagon bolt |
| 12 | Set ring |
| 13 | Set screw |
