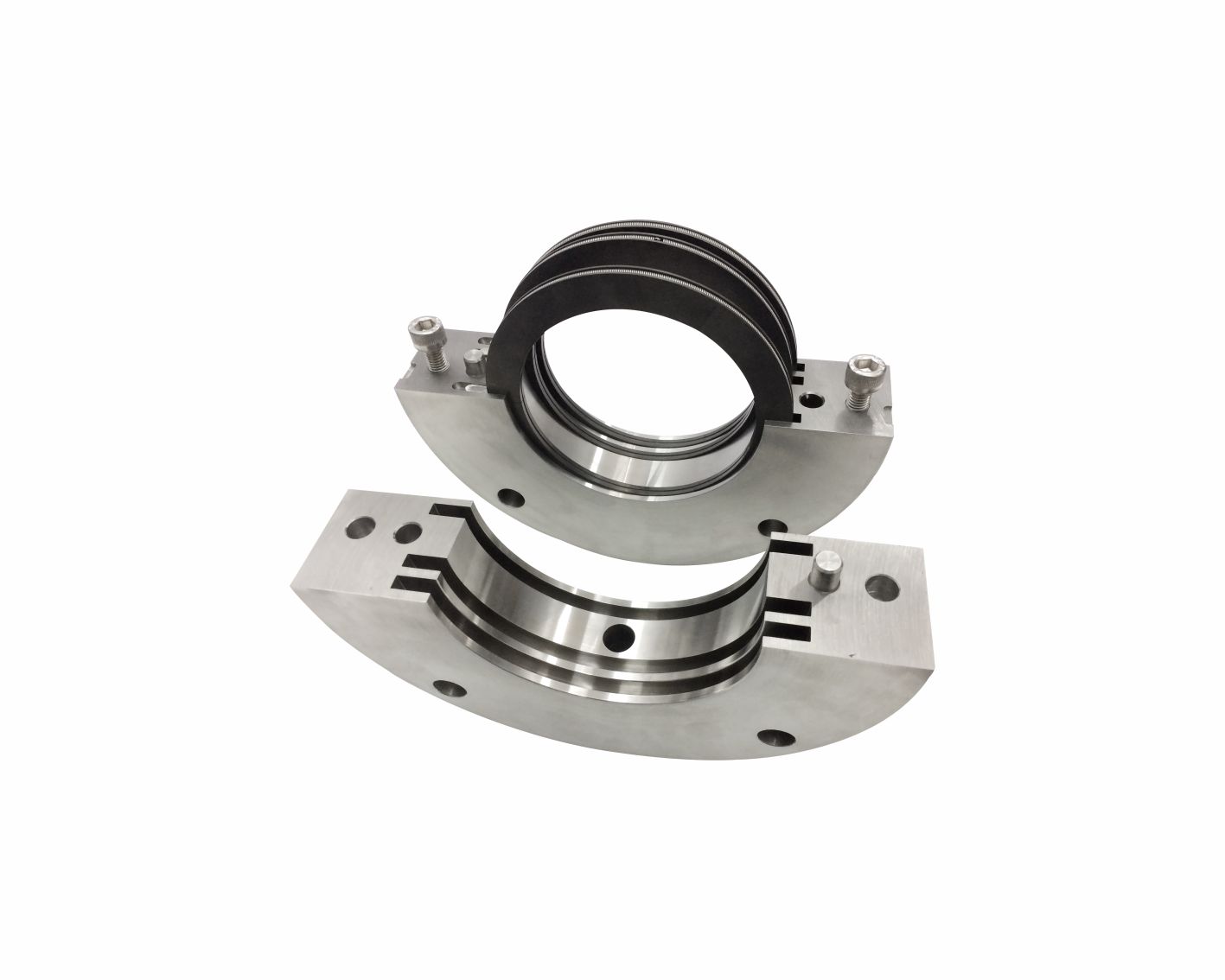

ADKS
Product Description
- Designed to accommodate axial shaft movement
- Capable of running dry

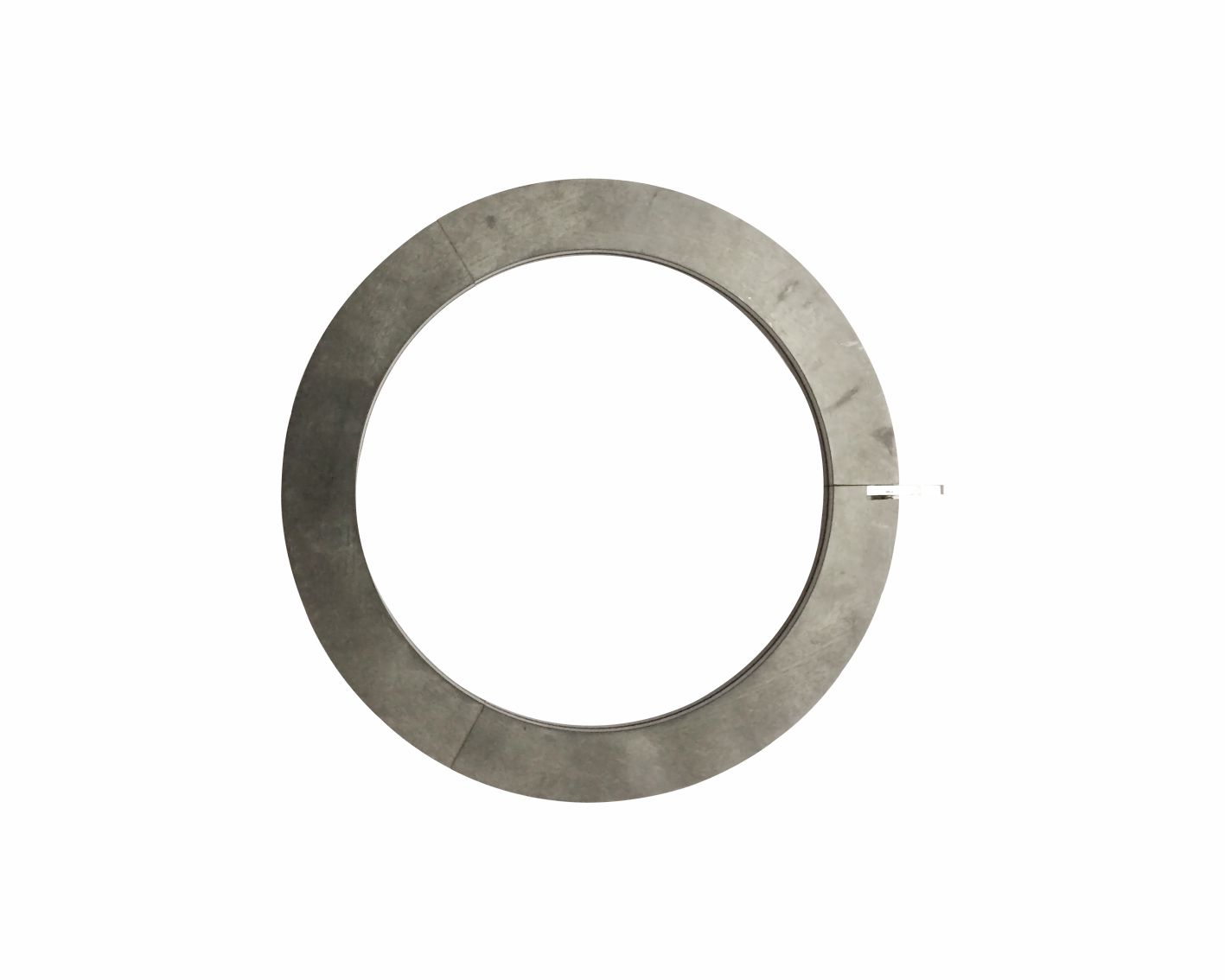

- Radially cut multi-part seal rings
- Shaft free of sealing components which minimizes the shaft vibrations
- Seal rings are self adjusting
- Shaft movement is accommodated by seal rings
- Minimal power consumption as seal rings are non-contacting

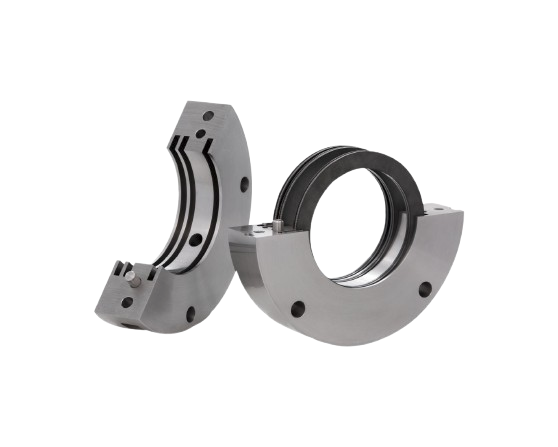

- Design of the seal housing is split
- Low leakage due to extremely reduced gap during operation

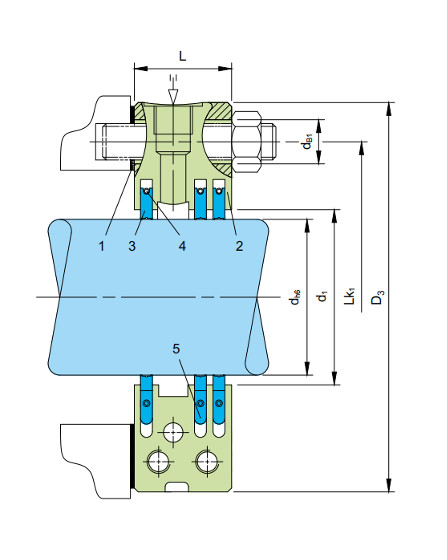

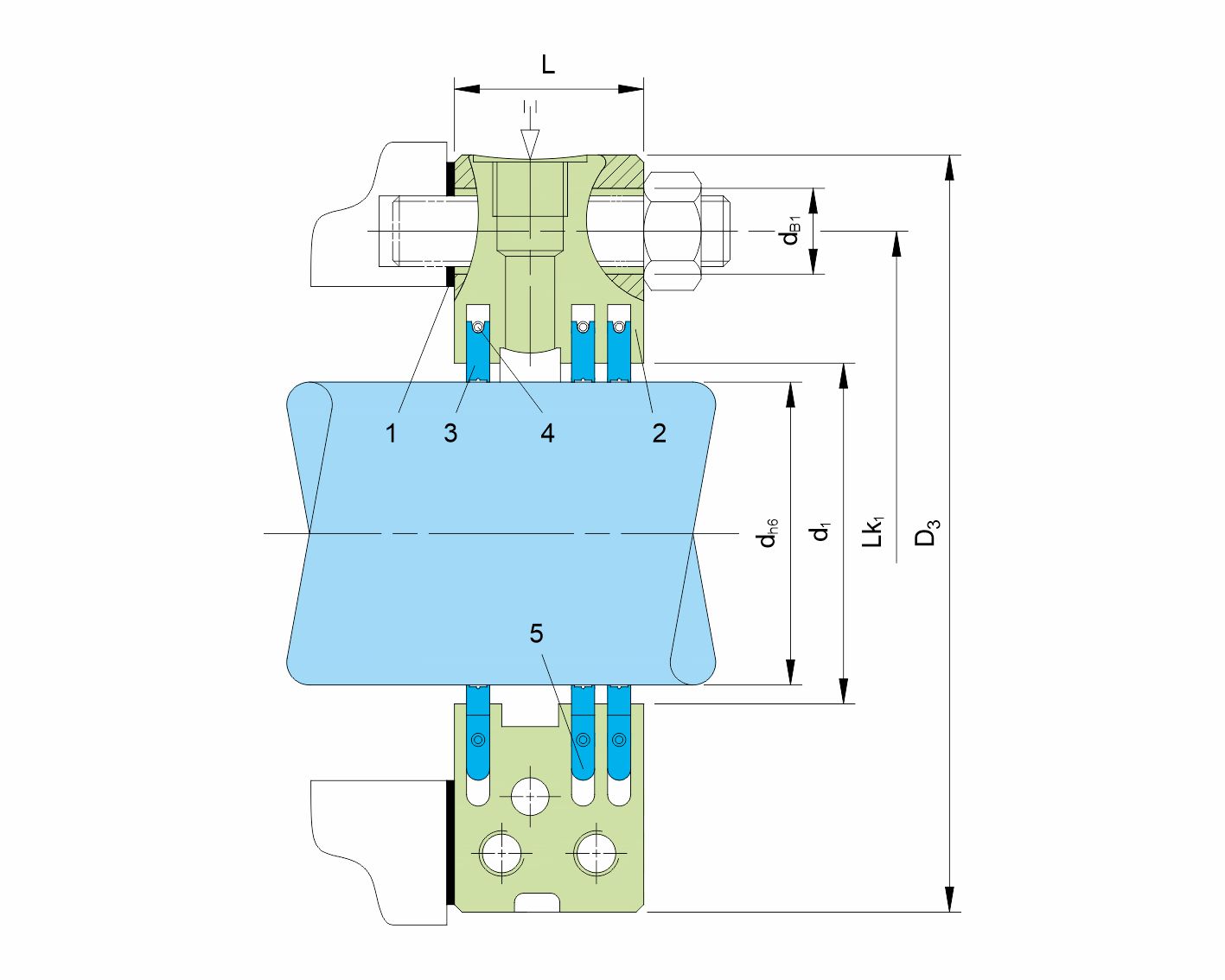

| Details | |
|---|---|
| Item No. | Description |
| 1 | Flat seal |
| 2 | Housing, 2-piece |
| 3 | Seal ring |
| 4 | Tension spring |
| 5 | Detent |
