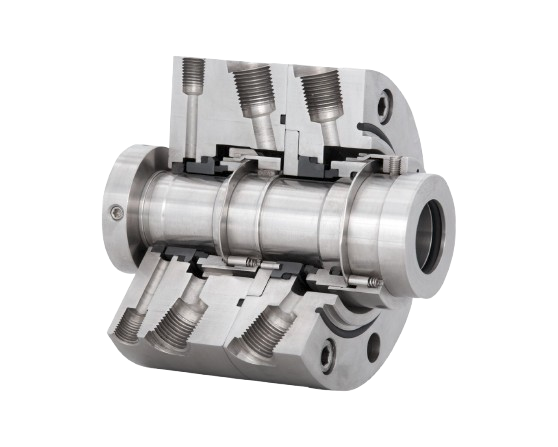

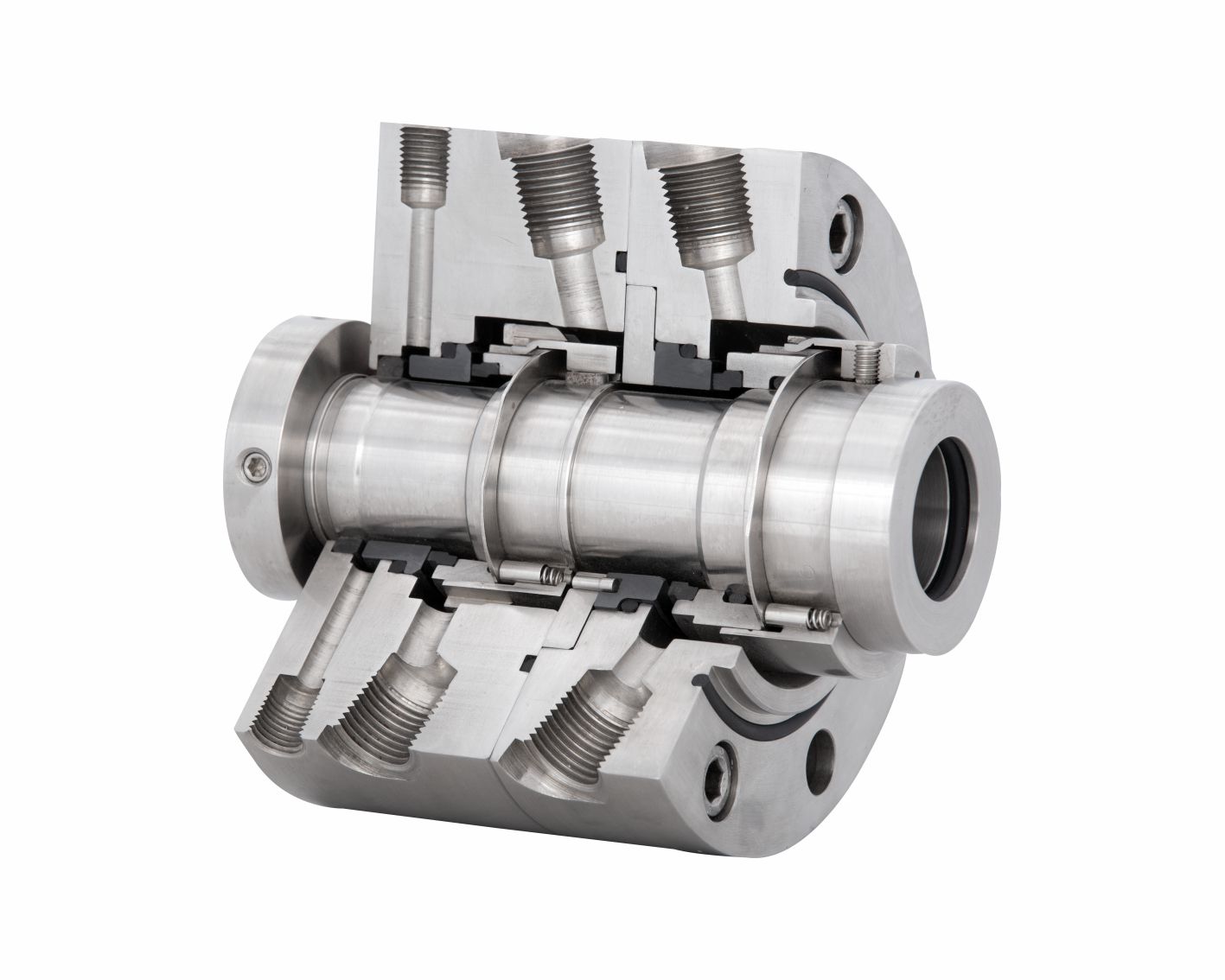

B750VK
Product Description
- Dual seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Bi-directional design available
- Category 2 and 3, Type A, Arrangement2 or 3
- Design in accordance to API 682 / ISO21049
- Pumping device available for increase defficiency in circulation
- Rotary unit with multiple springs
- Can accommodate reverse pressure

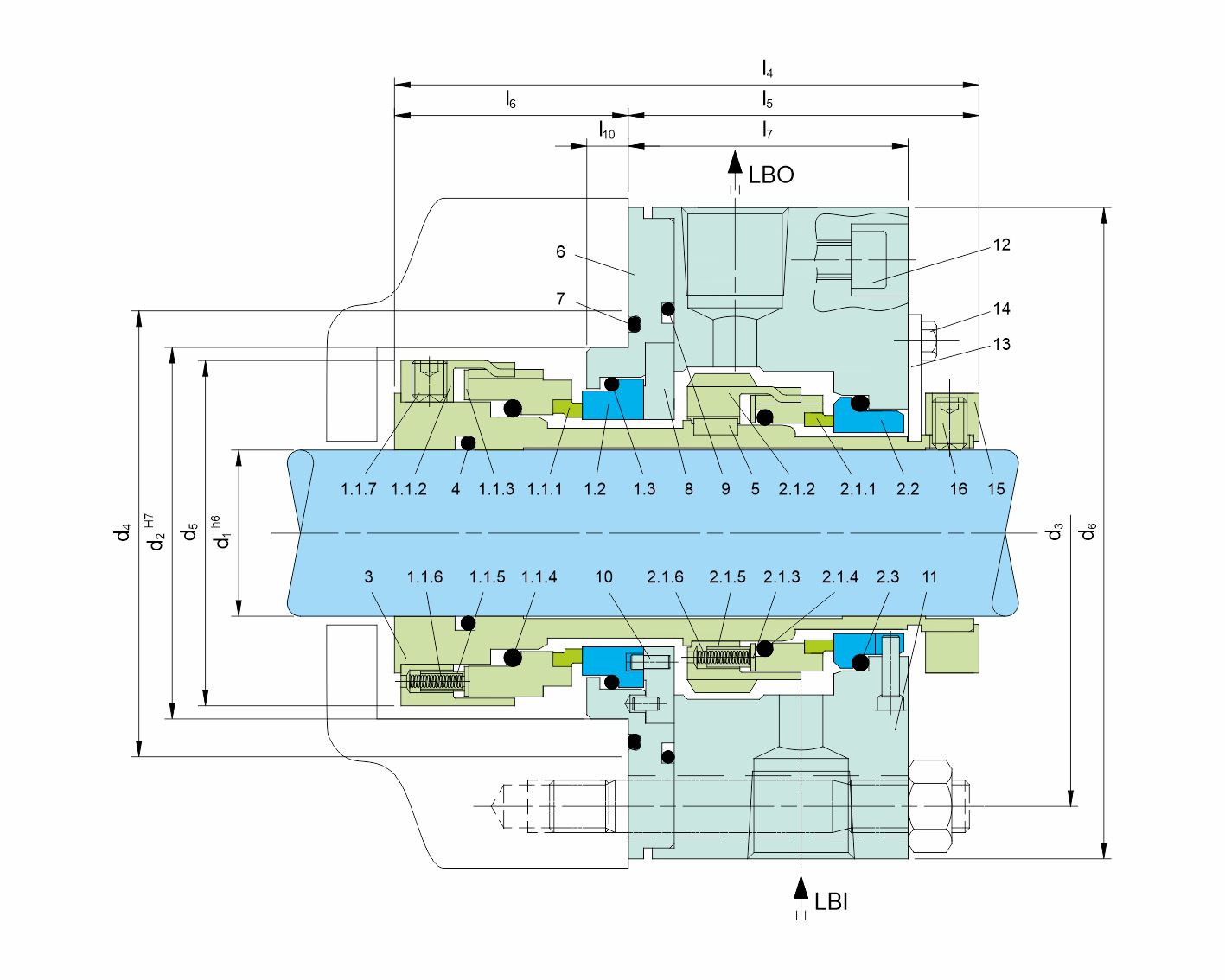

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1, 2.1.1 | Seal face |
| 1.1.2, 2.1.2 | Driver |
| 1.1.3, 2.1.3 | Thrust ring |
| 1.1.4, 2.1.4, 1.3, 2.3 | O-Ring |
| 1.1.5, 2.1.5 | Spring Sleeve |
| 1.1.6, 2.1.6 | Spring |
| 1.1.7 | Set screw |
| 1.2, 2.2 | Seat |
| 3 | Shaft sleeve |
| 4 | O-Ring |
| 5 | Key |
| 6 | Adapter |
| 7 | O-Ring |
| 8 | Washer |
| 9 | O-Ring |
| 10 | Pin |
| 11 | Housing |
| 12 | HSH cap screw |
| 13 | Assembly fixture |
| 14 | Hexagon bolt |
| 15 | Set ring |
| 16 | Set screw |
