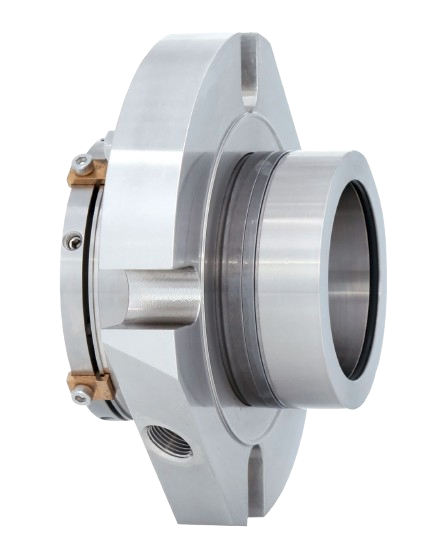

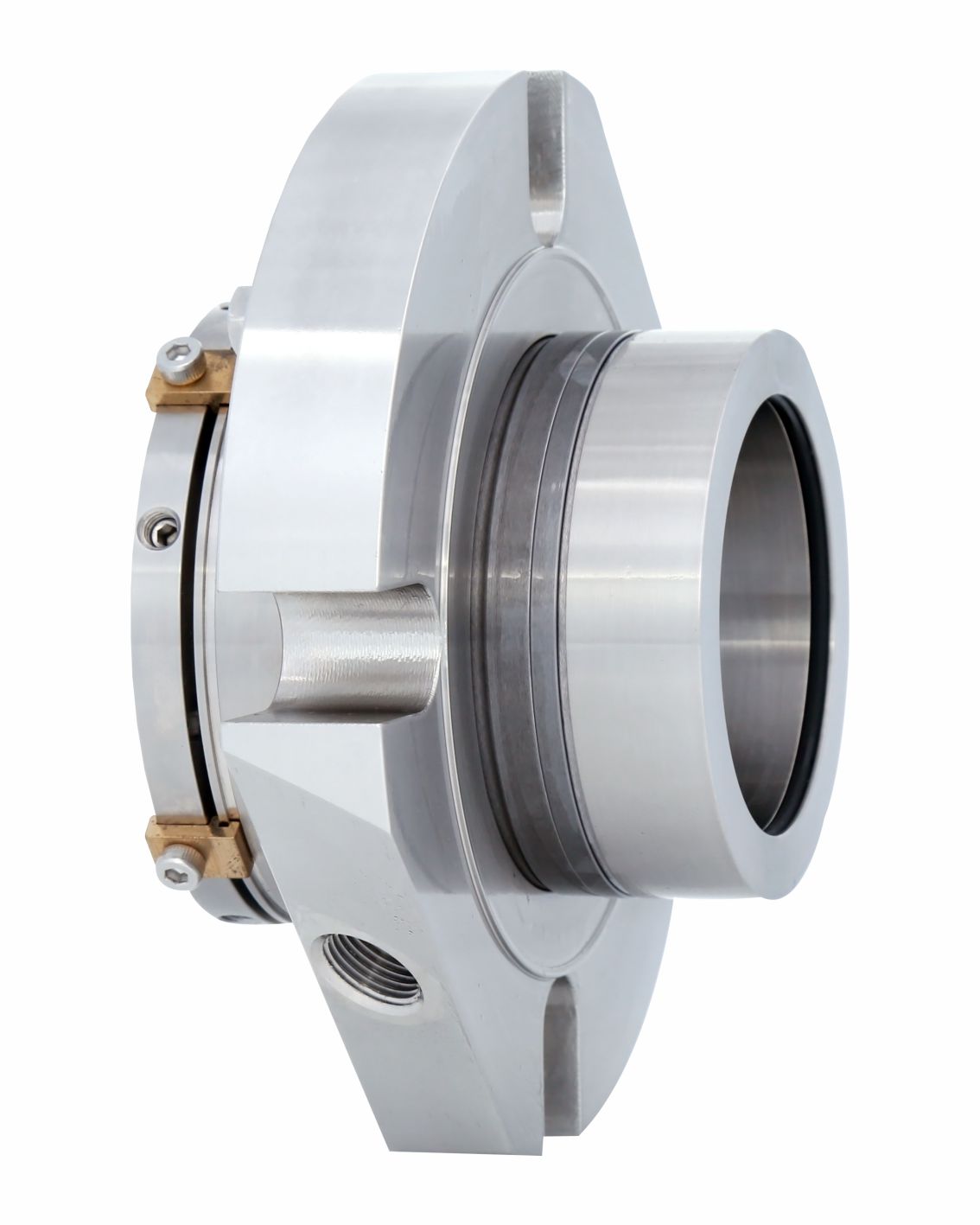

CTX ANSI Dual Seals
Product Description
- Dual seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Available for standard (CTX-ASDN)and big bore (CTX-ABDN) sealchambers
- Double pressure balanced
- Designed with integrated pumpingdevice for increased efficiency incirculation
| Details | |
|---|---|

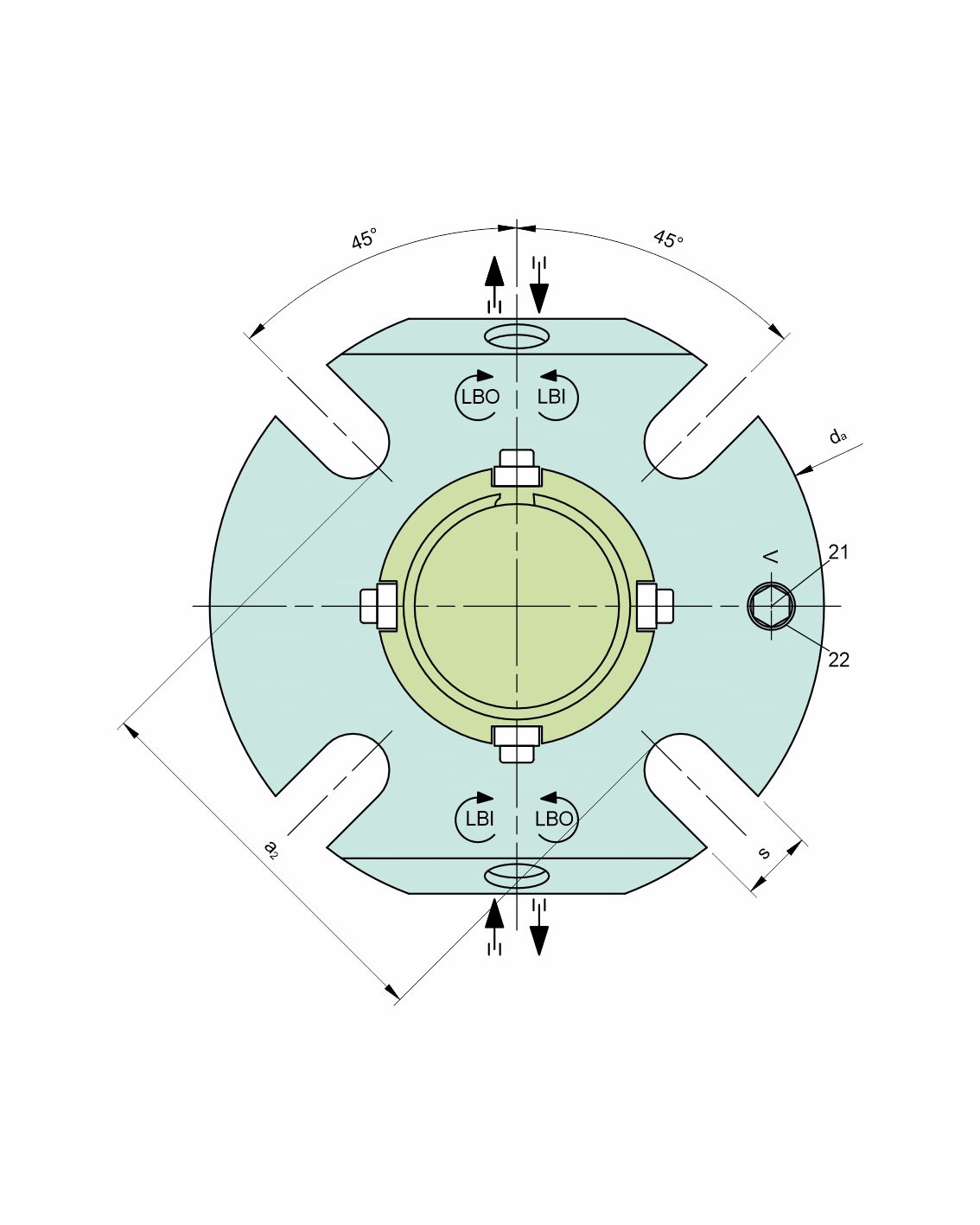

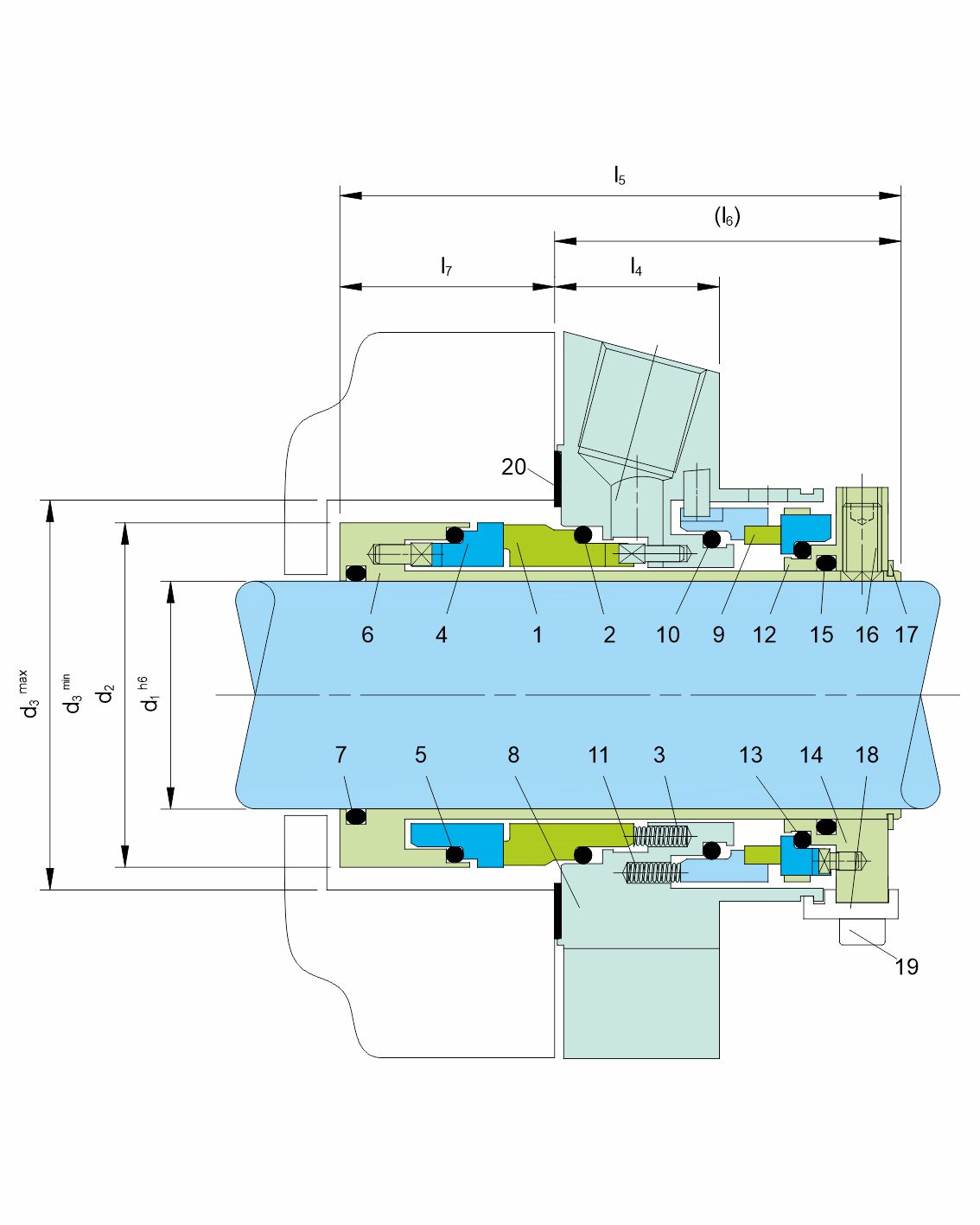

| Item No. | Description |
| 1 | Seal face |
| 2, 5, 7, 10, 13, 15 | O-Ring |
| 3 | Spring |
| 4 | Seat |
| 6 | Shaft sleeve |
| 8 | Cover |
| 9 | Seal face |
| 11 | Spring |
| 12 | Seat |
| 14 | Drive collar |
| 16 | Set screw |
| 17 | Snap ring |
| 18 | Assembly fixture |
| 19 | HSH Cap Screw |
| 20 | Gasket |
| 21 | Screw plug |
| 22 | Gasket |
