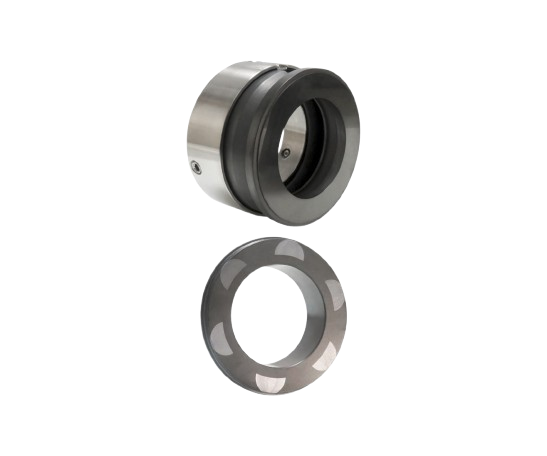

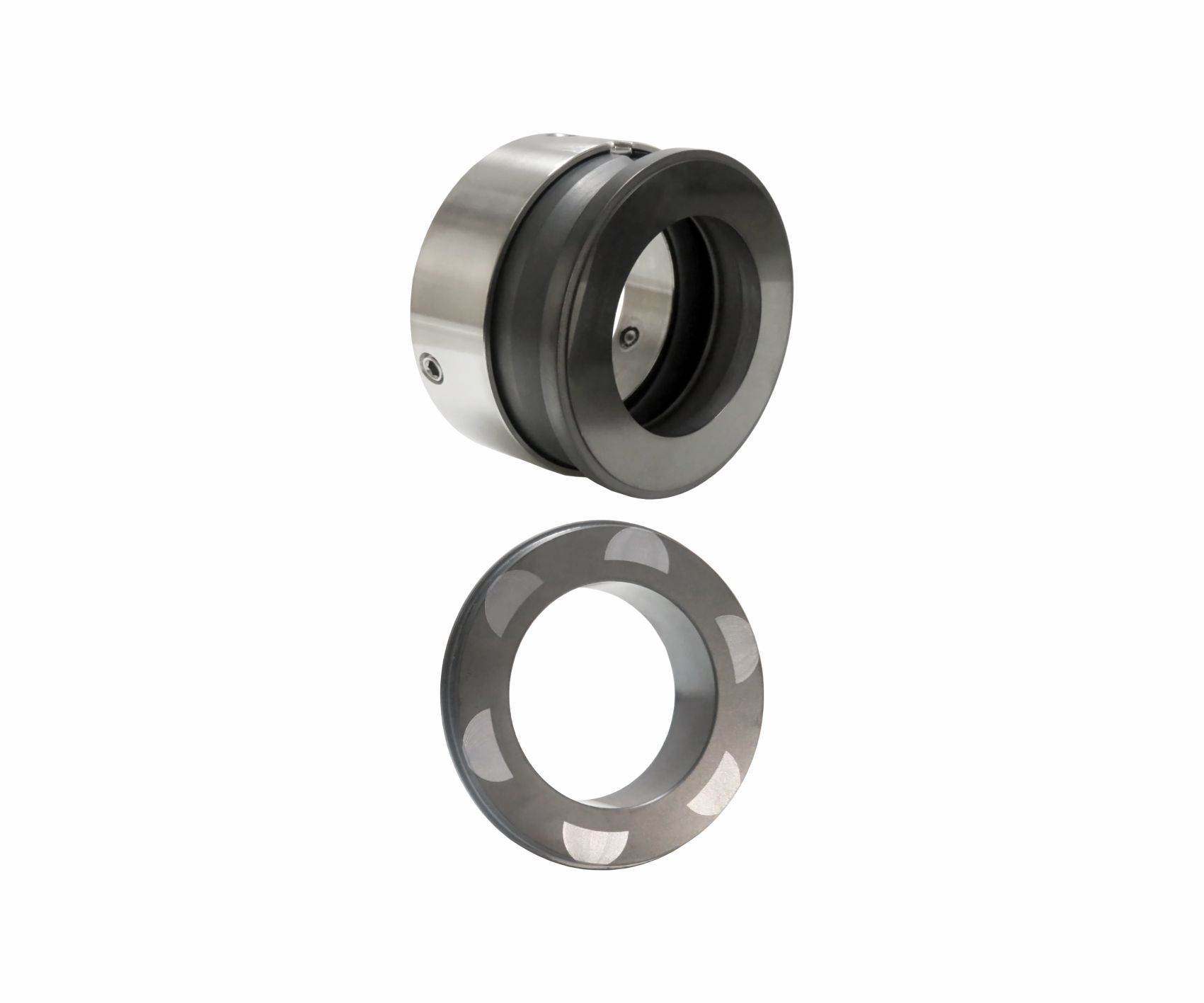

GSPH-K
Product Description
- Single and Dual seal configuration
- Balanced design
- For stepped shafts
- Rotary unit with multiple springs
- Designed to remain in closed position in the event of buffer pressure failure
- Can accommodate reverse pressure
- Gas-lubricated design
- Gas grooves design is available in V-grooves and U-grooves (independent of direction of rotation)

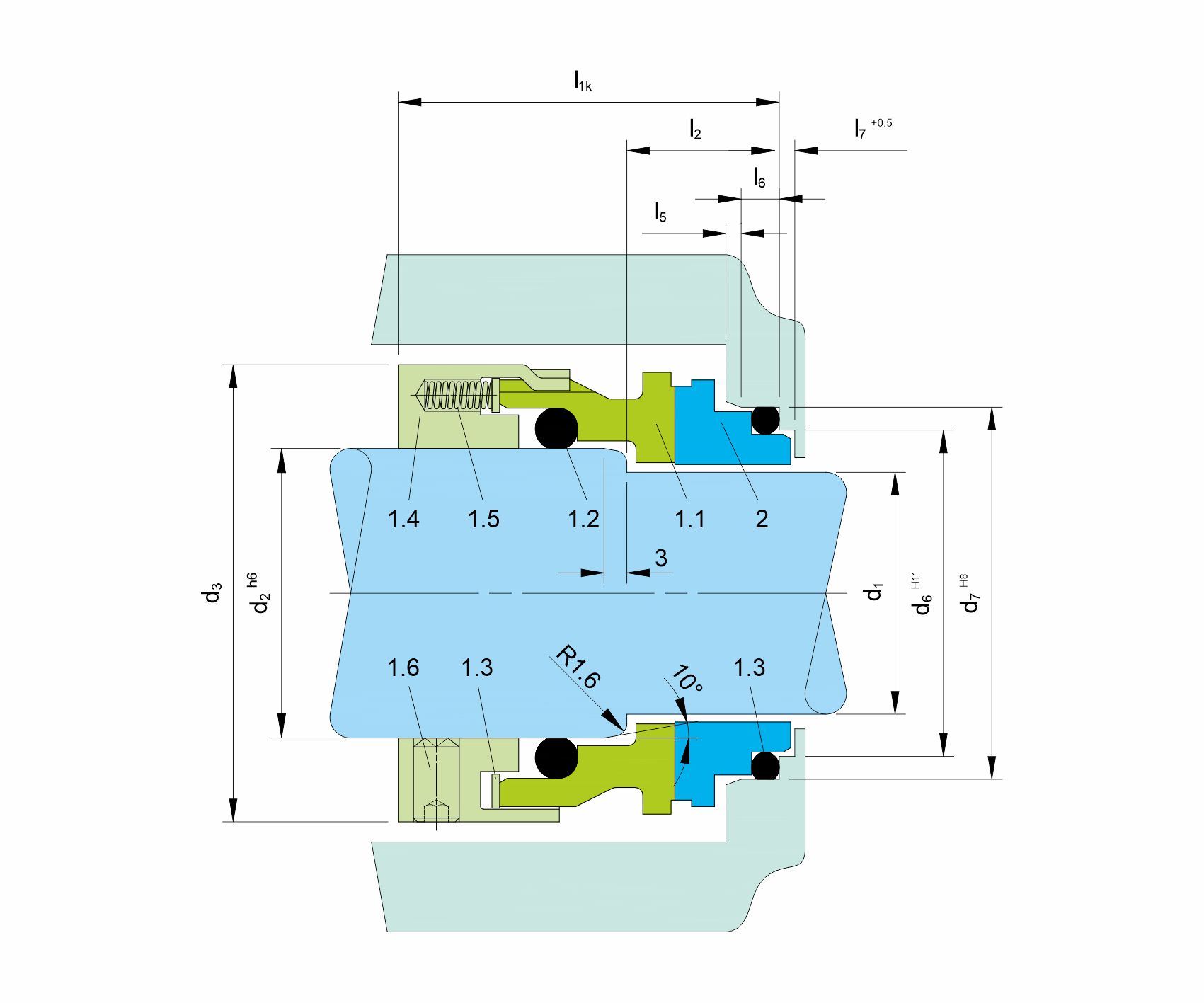

| Details | |
|---|---|
| Item No. | Description |
| 1.1 | Sliding face |
| 1.2 | O-Ring |
| 1.3 | Thrust ring |
| 1.4 | Drive collar |
| 1.5 | Spring |
| 1.6 | Set screw |
| 2 | Seat |
| 3 | O-Ring |
