SB Single Seal
API 682 4th Edition Category 2&3
Seal Type A (Stationary)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)
Product Description
- API 682 Category 2 and 3, Type A, Arrangement 1 seal
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Stationary design with multiple springs
- Designed with integrated pumping device for increased efficiency in circulation
- Robust construction with shrink-fitted seal face
- Heavy duty design of solid seat

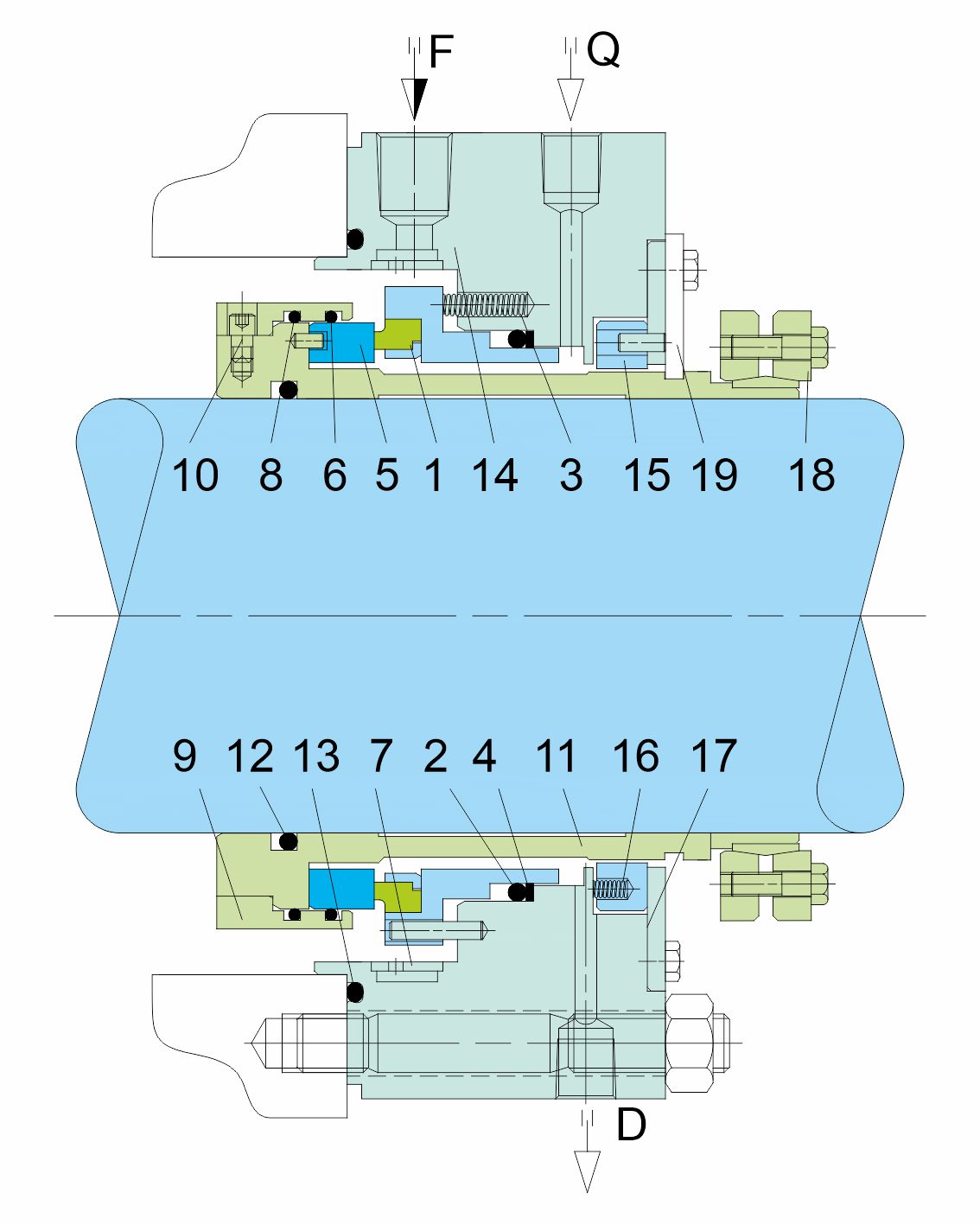

| Details | |
|---|---|
| Item No. | Description |
| 1 | Seal Ring |
| 2,6,8,12,13 | O-ring |
| 3,16 | Spring |
| 4 | Back-up ring |
| 5 | Mating ring |
| 7 | Multi-flow distributor |
| 9 | Sleeve |
| 10 | Set screw |
| 11 | Shaft sleeve |
| 14 | Gland |
| 15 | Throttle bushing |
| 17 | Washer |
| 18 | Shrink Disc |
| 19 | Setting plate |
| 20 | Hexagon bolt |
| F | Flush |
| Q | Quench |
| D | Drain |
