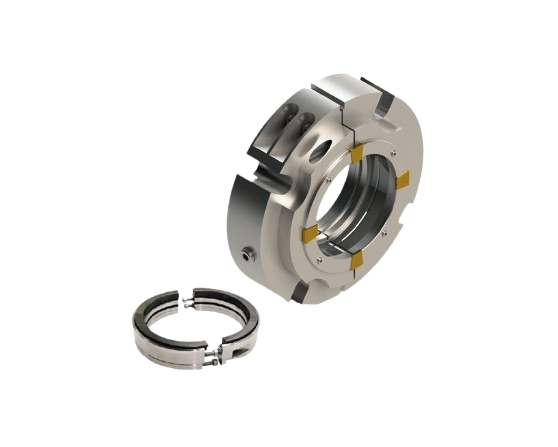

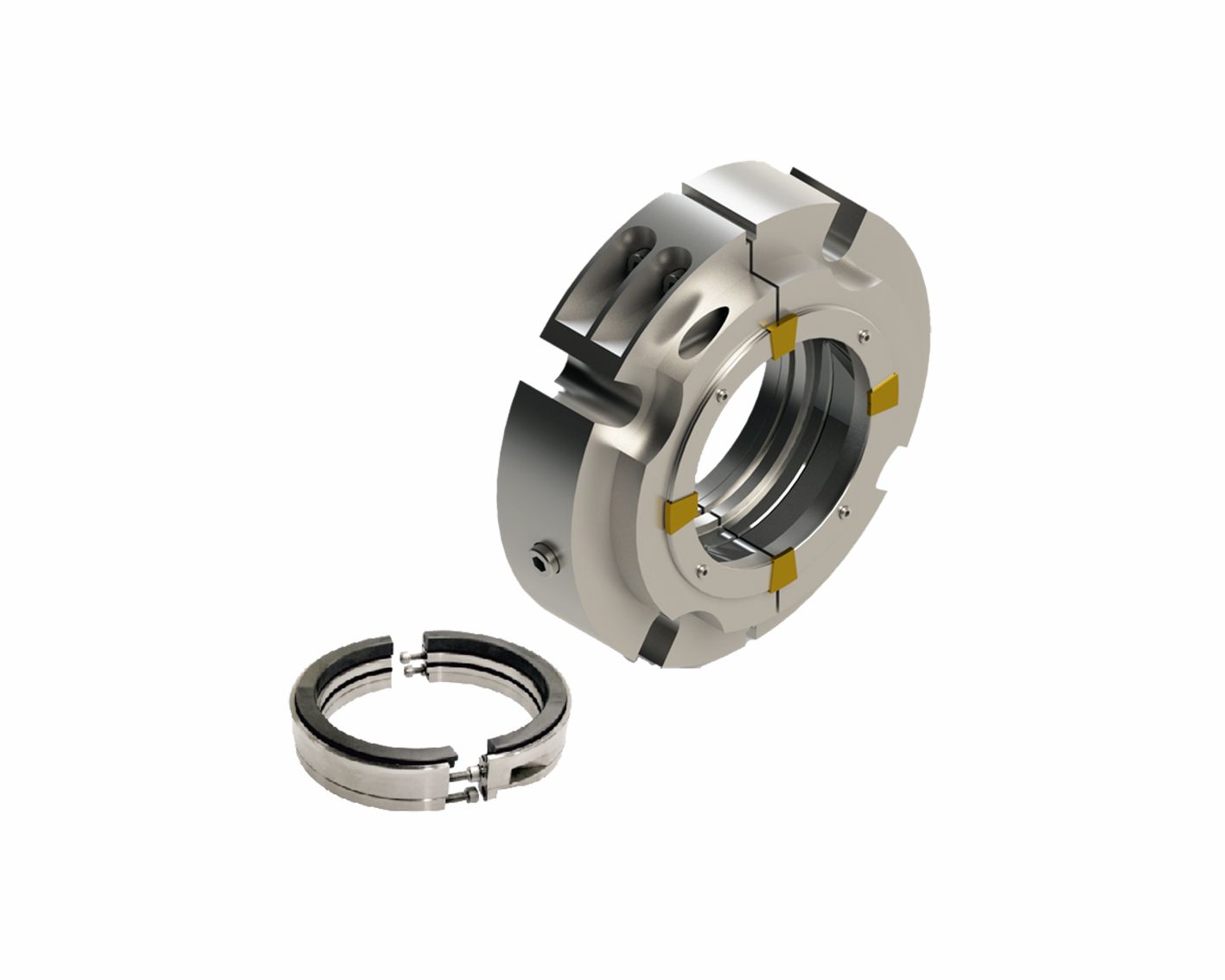

SPX
Product Description
- Single seal in split configuration
- Balanced design
- Independent of direction of rotation
- For plain shafts
- Semi-cartridge construction
- Built-in flushing connections
- Designed with external pressurization
- Factory assembled fully split singleseal, 2 x 2 segments
- Stationary design with multiple springs

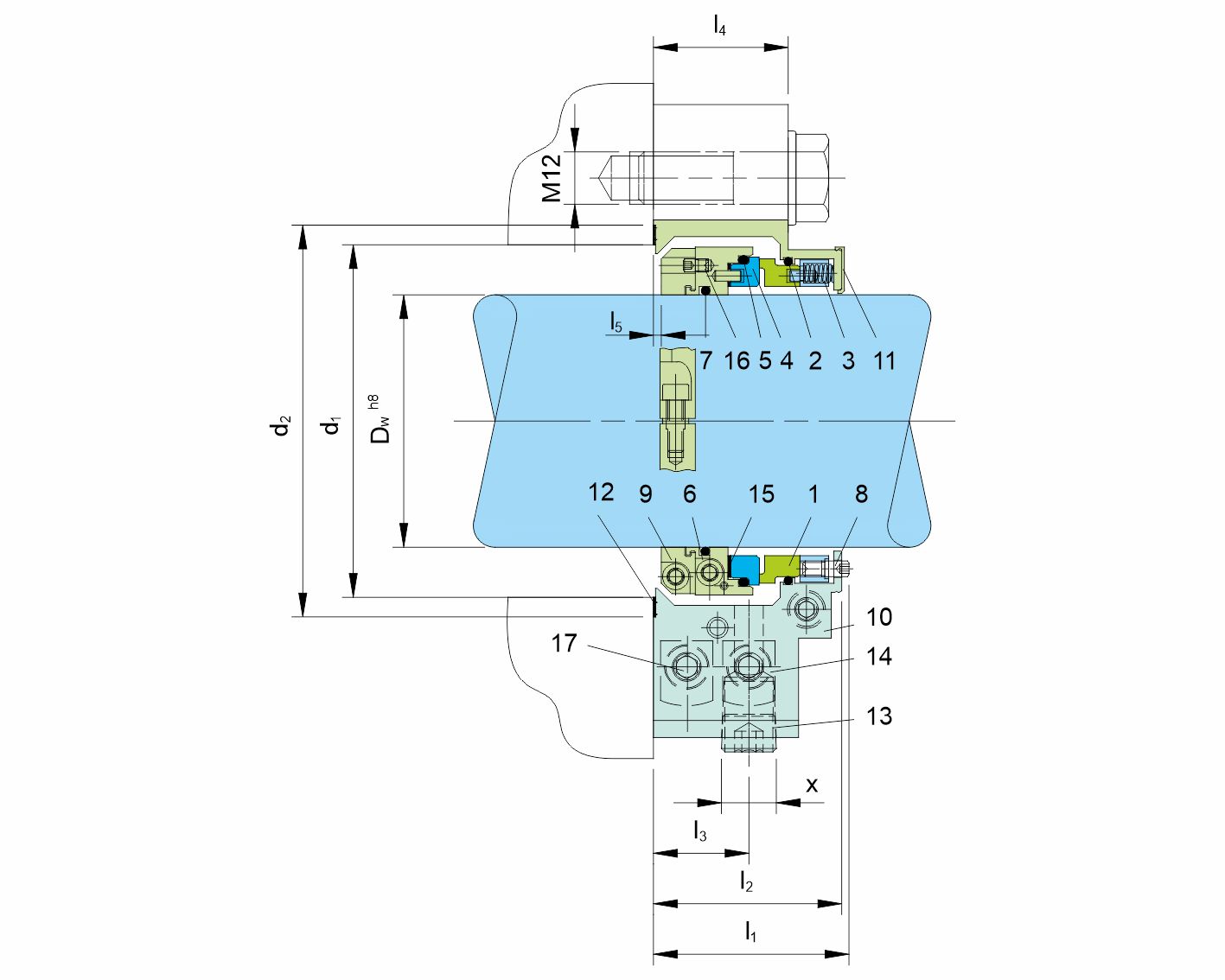

| Details | |
|---|---|
| Item No. | Description |
| 1 | Seal face |
| 2,5,7 | O-ring |
| 3 | Spring |
| 4 | Seat |
| 6 | Driver |
| 8 | Thrust ring |
| 9 | Clamp collar |
| 10 | Housing |
| 11 | Assembly fixture |
| 12,15 | Gasket |
| 13 | Head screw plug |
| 14 | Mounting plate |
| 16 | Set screw |
| 17 | Socket head screw |
