CTX

CTX Dual Seals

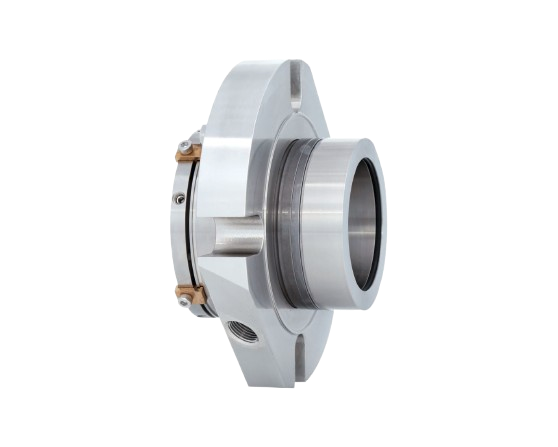

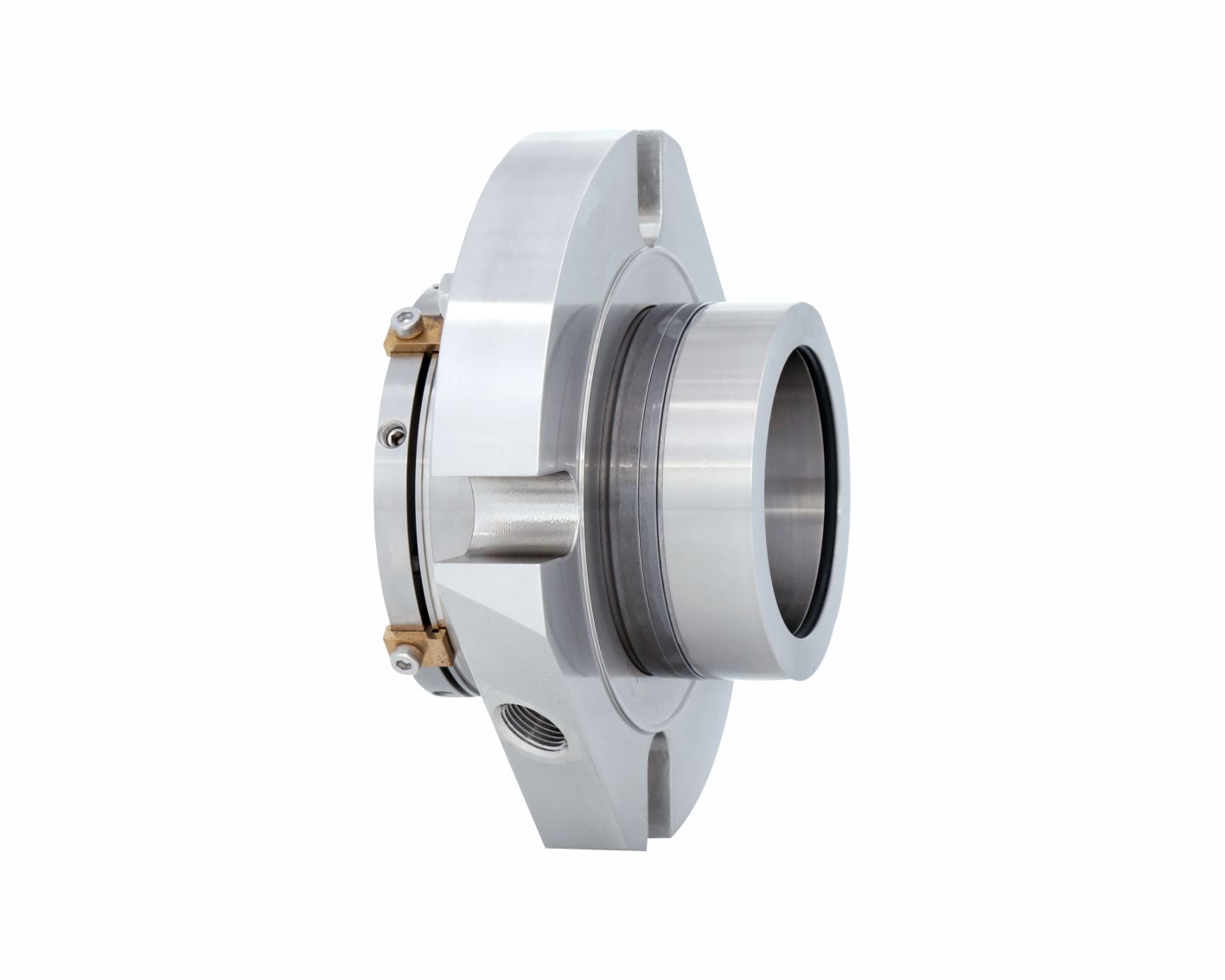

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Double pressure balanced
  • Designed with integrated pumpingdevice for increased efficiency incirculation
  • Special design available for eccentricscrew pumps
Details

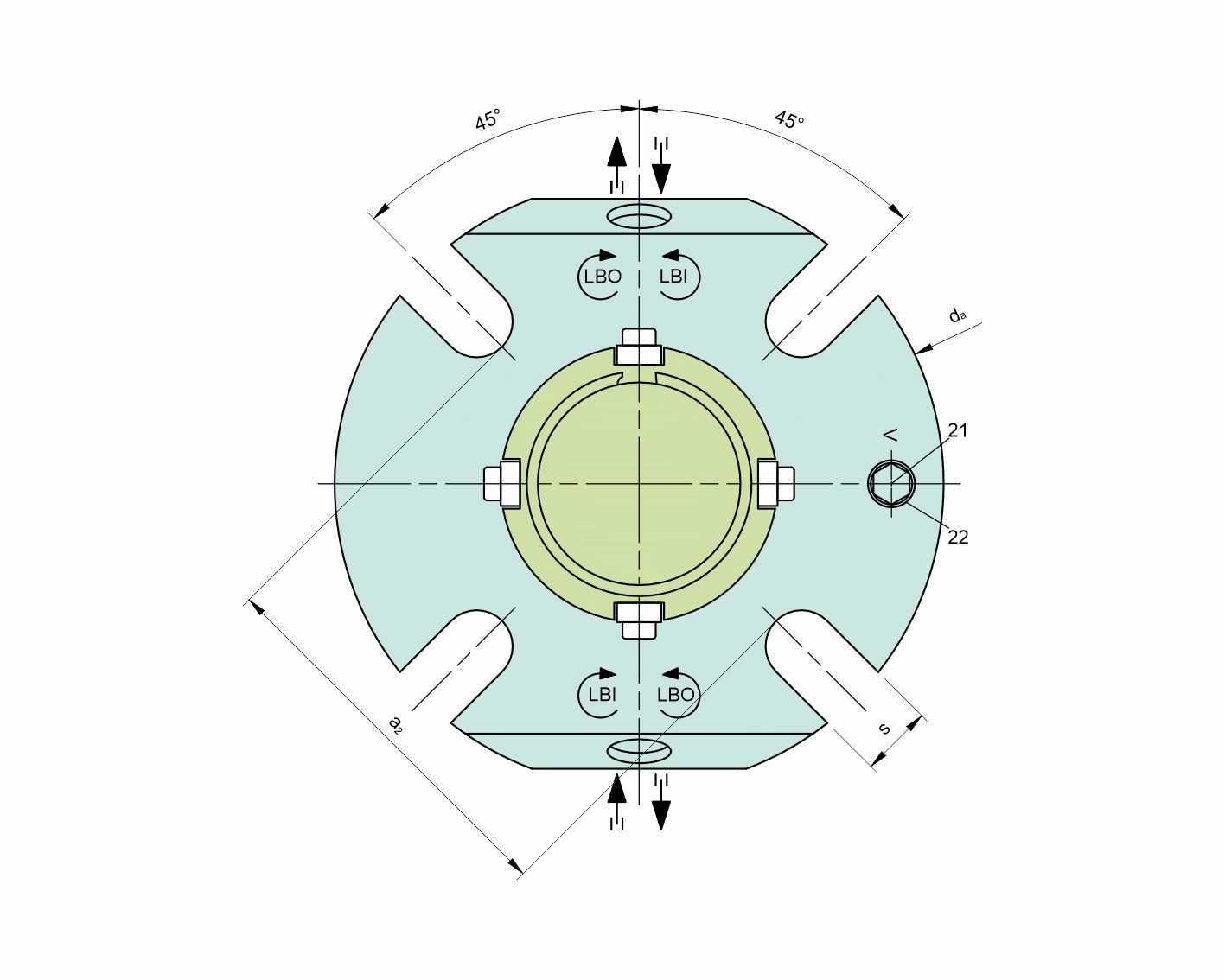

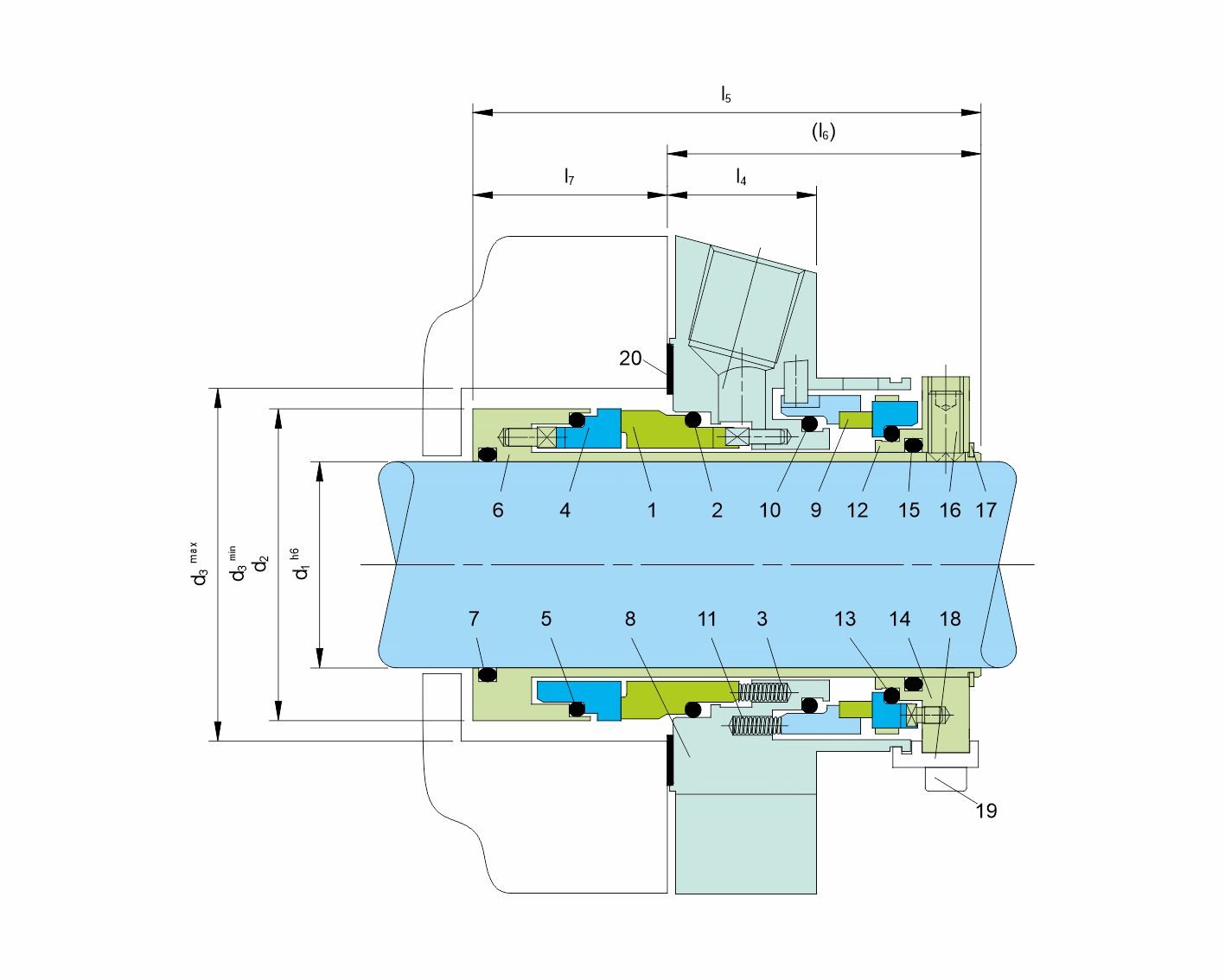

Item No. Description
1 Seal face
2, 5, 7, 10, 13 15 O-Ring
11 Spring
12 Seat
6 Shaft sleeve
8 Cover
9 Seal face
14 Drive collar
16 Set screw
17 Snap ring
18 Assembly fixture
19 HSH Cap Screw
20 Gasket
21 Screw plug
22 Gasket
Download PDF
CTX
CTX
CTX
CTX
CTX
CTX
Technical Features
  • Ideal for use in process pumpstandardization
  • O-ring is dynamically loaded to preventshaft damage.
  • Dimensional modification of the stuffingbox chamber is not required due toshort radial installation height
  • Ideal to convert and retrofit pumps withpackings and large volume OEMproduction
  • Cartridge unit factory assembled foreasy installation, which reduces down-time
  • Rugged design for long operating life
  • Chemical industry
  • Food and beverage industry
  • Petrochemical industry
  • Pharmaceutical industry
  • Universally applicable
  • Water and waste water technology
  • Centrifugal pumps
  • Eccentric screw pumps
  • Seal face: Silicon carbide (Q1), Carbongraphite resin impregnated (B), Tungstencarbide (U2)
  • Seat: Silicon carbide (Q1)
  • Secondary seals: FKM (V), EPDM (E),FFKM (K), Perfluorocarbon rubber/PTFE (U1)
  • Springs: Hastelloy® C-4 (M)
  • Metal parts: CrNiMo steel (G), CrNiMo caststeel (G)
  • Sizes: d1 = Upto 100 mm (Upto 4.000’’)
    Other sizes on request
    Temperature: t= - 40 °C ... +220 °C
    (- 40 °F ... +428 °F)
    (Check O-ring resistance)
  • Sliding face material combination BQ1
    Pressure: p1 = 25 bar (363 PSI)
    Speed = 16 m/s (52 ft/s)
  • Sliding face material combination Q1Q1 orU2Q1
    Pressure: p1 = 20 bar (290 PSI)
    Speed = 10 m/s (33 ft/s)
    Barrier fluid circulation system:
    p3max = 25 bar (363 PSI)
    Δp (p3 - p1 ) ideal = 2 ... 3 bar (29 ... 44 PSI),
    7 bar (102 PSI) for barrier media with poor
    lubricating properties)
    Pump startup:
    Δp (p3 - p1 )max = 25 bar (363 PSI) allowed
    Recommended supply medium: max. ISO VG 5
    Permissible axial movement: ± 1.0 mm,
    d1 ≥ 75 mm ± 1.5 mm
